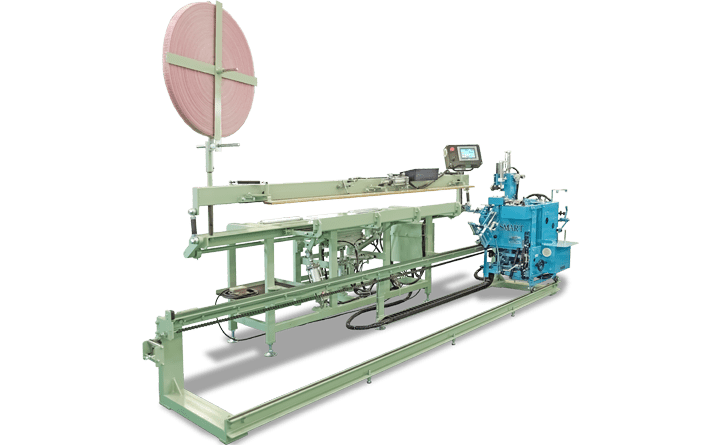

All automatic backstitch machine smart type 5
All automatic backstitch machine smart type 5
It is the choice of the machine a person-saving! Operation simple with the color liquid crystal display panel deployment, a message screen!
If ride a tatami mat, only push the start button; all; sew it automatically.
I realize complete automation of the backstitch work speedily.

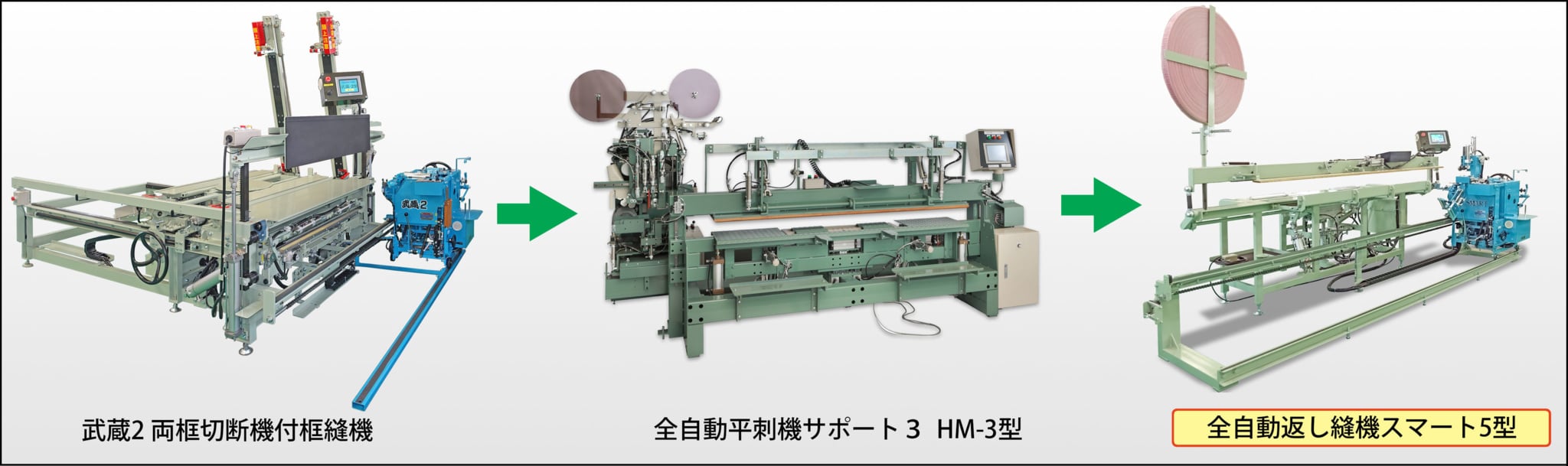

I back up labor saving by combination with the support (flat splinter machine) more strongly.
I back up labor saving by combination with the support (flat splinter machine) more strongly.
Improvement ... from - slender 3
●A sewing position rose.
●Braking time shortened it by a change of the run control of the sewing machine.
●I automatically stop it by any chance when a sewing machine interferes it at the time of the high-speed movement of the sewing machine all the time and becomes alienated.
●I changed many limit switches to the proximity switch (no point of contact).
●A sewing position rose.
●Braking time shortened it by a change of the run control of the sewing machine.
●I automatically stop it by any chance when a sewing machine interferes it at the time of the high-speed movement of the sewing machine all the time and becomes alienated.
●I changed many limit switches to the proximity switch (no point of contact).
There was not the point of contact defectiveness, and responsiveness improved again.
●I prepared a remote-control switch. I can operate it at any place without going to an operation panel.
●The boot-time of the color liquid crystal display panel became largely fast.
●I prepared a remote-control switch. I can operate it at any place without going to an operation panel.
●The boot-time of the color liquid crystal display panel became largely fast.
■Summary
The color liquid crystal display panel deployment
●The control panel adopts a color LCD screen, and the operation only touches touch panel lightly,
The simple operation that the mode reshuffling only touches a screen lightly.
●I begin to sew it, and a needle position of the sewing end, the number of the needles of the stopping sewing are easily setable, too.
●As the trouble is displayed by a message screen, I am reliable at the time of emergency. I can easily use anyone.
●I begin to sew it, and a needle position of the sewing end, the number of the needles of the stopping sewing are easily setable, too.
●As the trouble is displayed by a message screen, I am reliable at the time of emergency. I can easily use anyone.
Improvement ... from - slender 3
●The boot-time of the color liquid crystal display panel became largely fast.

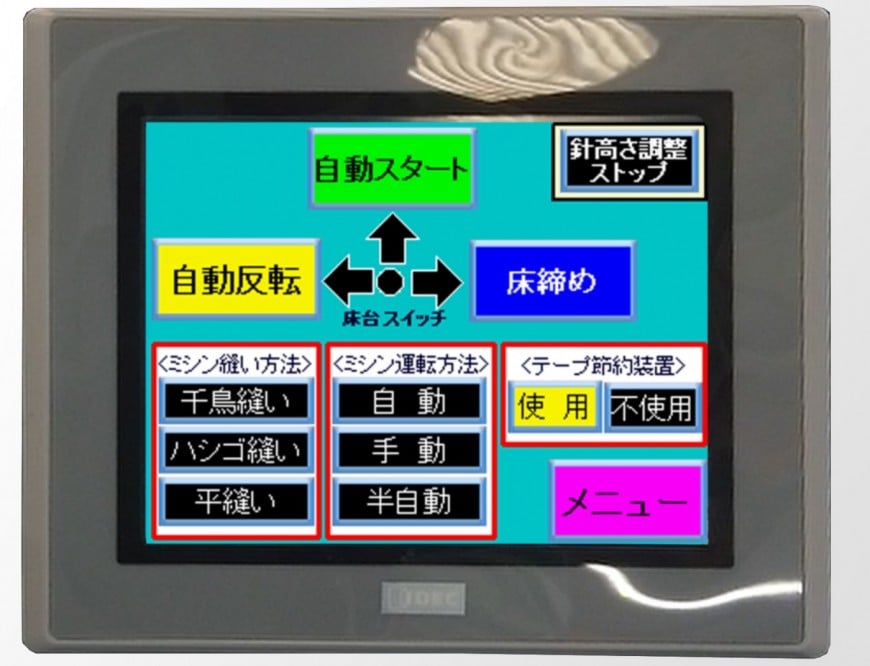

Operation panel
To rimless tatami a new confrontation mode (ladder sewing)
●I add a ladder sewing mode of the newly beautiful finish to a mode of the conventional flat stitch, plover sewing,
Three kinds of sewing methods can be selected by one-touch from a driving screen.

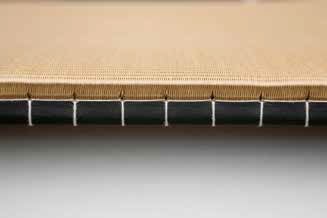

Ladder sewing

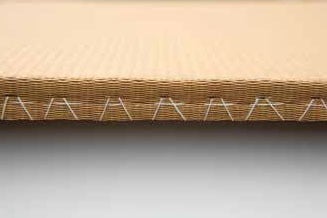

Plover sewing, flat stitch
I can operate setsukagijo automatically, too
●The tatami mat with the out of hook of the whole hand, fingers, interval is available for automatic driving, too.
Return; a tape economizer for the straw
●As I return it, and a tape economizer for the straw is on, there is not waste of the tape.
■Characteristic
●Positioning of the tatami mat, tatami mat weight, stopping sewing, cutting of the tape for the top, the lower thread return,
All of half-turn and backstitch work is automatic in a tatami mat.
●Floor burglary devices usually receive it in a tatami mat stand to be able to ease sumi stopping work.
●Progress, the retreat of the sewing machine body are free even if automatic when I change it to manual operation.
I sew it at the time of emergency again and can easily do it.
●I am driving, and reshuffling of automatic ⇔ manual operation is possible.
●When the running out of thread of a thread, the lower thread or an upper thread, a lower thread disappeared after an emergency, I automatically stop it.
●As for the adjustment of forwarding eyes, come to a dial-type.
I can easily change it to 15-65mm (five minutes - 2 sun two minutes).
●Because I adopt a servomotor, forwarding is smooth, and there are few vibration sounds, too.

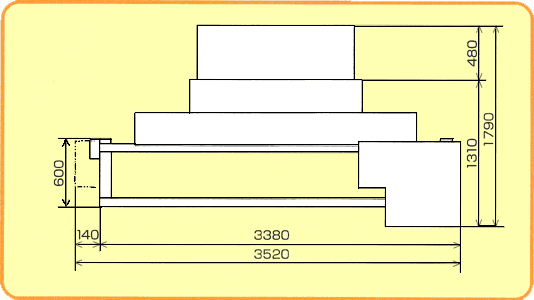

■Fixed ground plan
Video
■Specifications
Smart type 5 specifications
| |
Full length
| 3,380mm
|
Width
| 1,790mm
|
Height
| 2,100mm
|
Tatami mat stand height
| 800mm
|
Weight
| 450 kg
|
Motor
| Sewing machine use With 200W slowdown machine brakes (one)
Sewing machine forwarding use 400W (one)
|
Rating consumption electric current
| 750W (a ministry of three or single phase)
|
I can sew it and am within an automatic range
| The length of the tatami mat 6 sun of 2 shaku 5 sun - 6 shakus
|
Width 3 sun of 2 shaku 5 sun - 3 shakus
| |
Thickness Four minutes - 2 sun
| |
Sewing method
| Use of two thread final sewing (plover sewing, ladder sewing) arcs needle
|
Sewing interval
| 15-65mm (no step adjustment)
|
Return; straw
| Tape-formed materials
|
Compressor
| More than 1KW (option)
|
