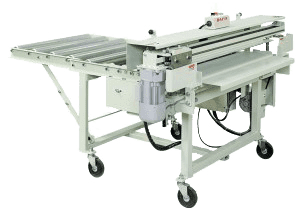

Automatic old tatami mat cutting machine -TC-3 type
Automatic old tatami mat cutting machine TC-3 type
■Characteristic
●Automatic right and left round-trip consecutive cutting
●2 sun of old tatami mat cutting width 3 sun - 1 shakus (no stage)
●Consecutive area measured by the number of tatami severability
●It is approximately one minute at a cutting width 1 shaku per 1 tatami
●Compact storing
●I fold a table after work!
●As is working under a caster; as for the movement easily
●2 sun of old tatami mat cutting width 3 sun - 1 shakus (no stage)
●Consecutive area measured by the number of tatami severability
●It is approximately one minute at a cutting width 1 shaku per 1 tatami
●Compact storing
●I fold a table after work!
●As is working under a caster; as for the movement easily
Video
Specifications
Specifications of the TC-3 type
| ||
Full length (frontage)
| 1,850mm (1 sun of 6 shakus)
| |
Folding storing
| 1,200mm (4 shakus)
| |
Width
| 1,650mm (5 sun of 5 shakus)
| |
Height
| 1,100mm (7 sun of 3 shakus)
| |
Tatami mat stand height
| 750mm (5 sun of 2 shakus)
| |
Weight
| 250 kg
| |
Motor
It is for cutting
Tatami mat tightening use
Tatami mat forwarding use
| Single phase 100V
| Three aspect 200V
|
400W (nothing)
| 400W (nothing)
| |
250W (nothing)
| 200W (nothing)
| |
200W (nothing)
| 200W (nothing)
| |
Rating power consumption
| 500W (three aspects or single phase)
| |
※I may change this way without a notice for improvement.
