For two uses machine GS-3 for the high-speed automatic control
For two uses machine for the high-speed automatic control

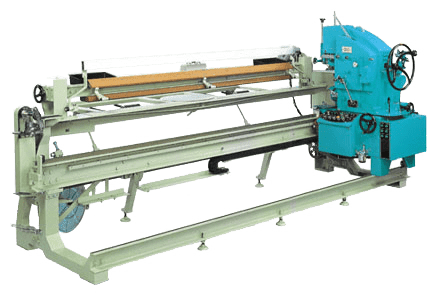

Grand servo GS-3
Grand servo GS-3
Sewing machine control panel
■Characteristic
●I only push the button, and the choice of the mode to sew of 6 patterns is OK.
Operation became very easy.
I can simplify the flat splinter nonstop rimless tatami by the choice of the mode to sew, too.
Operation became very easy.
I can simplify the flat splinter nonstop rimless tatami by the choice of the mode to sew, too.
Specifications of grand servo GS-3
| |||
Full length
| 3,200mm (6 sun of 10 shakus)
| ||
Height
| 1,450mm (8 sun of 4 shakus)
| ||
Width
| 1,490mm (9 sun of 4 shakus)
| ||
Tatami mat stand height
| 800mm (6 sun of 2 shakus)
| ||
Weight
| 740㎏
| ||
Motor -
Body sewing machine use Body forwarding use It is for body cutting Tatami mat stand use Tatami mat tightening use | Single phase 100V
| Three aspect 200V
| |
With 200W1/10 slowdown brakes (nothing)
| With 200W1/10 slowdown brakes (nothing)
| ||
400W (nothing)
| 400W (nothing)
| ||
250W (nothing)
| 200W (nothing)
| ||
300W (nothing)
| 200W (nothing)
| ||
200W (nothing)
| 200W (nothing)
| ||
Rating power consumption
| 1.1kw (three aspects or single phase)
| ||
Sewing method
| Two thread final sewing
| ||
Sewing interval
| Give back flat splinter 0-30mm (no stage); 0-55mm (no stage)
| ||
※I may change this way for a thing at the time of the new sale.
