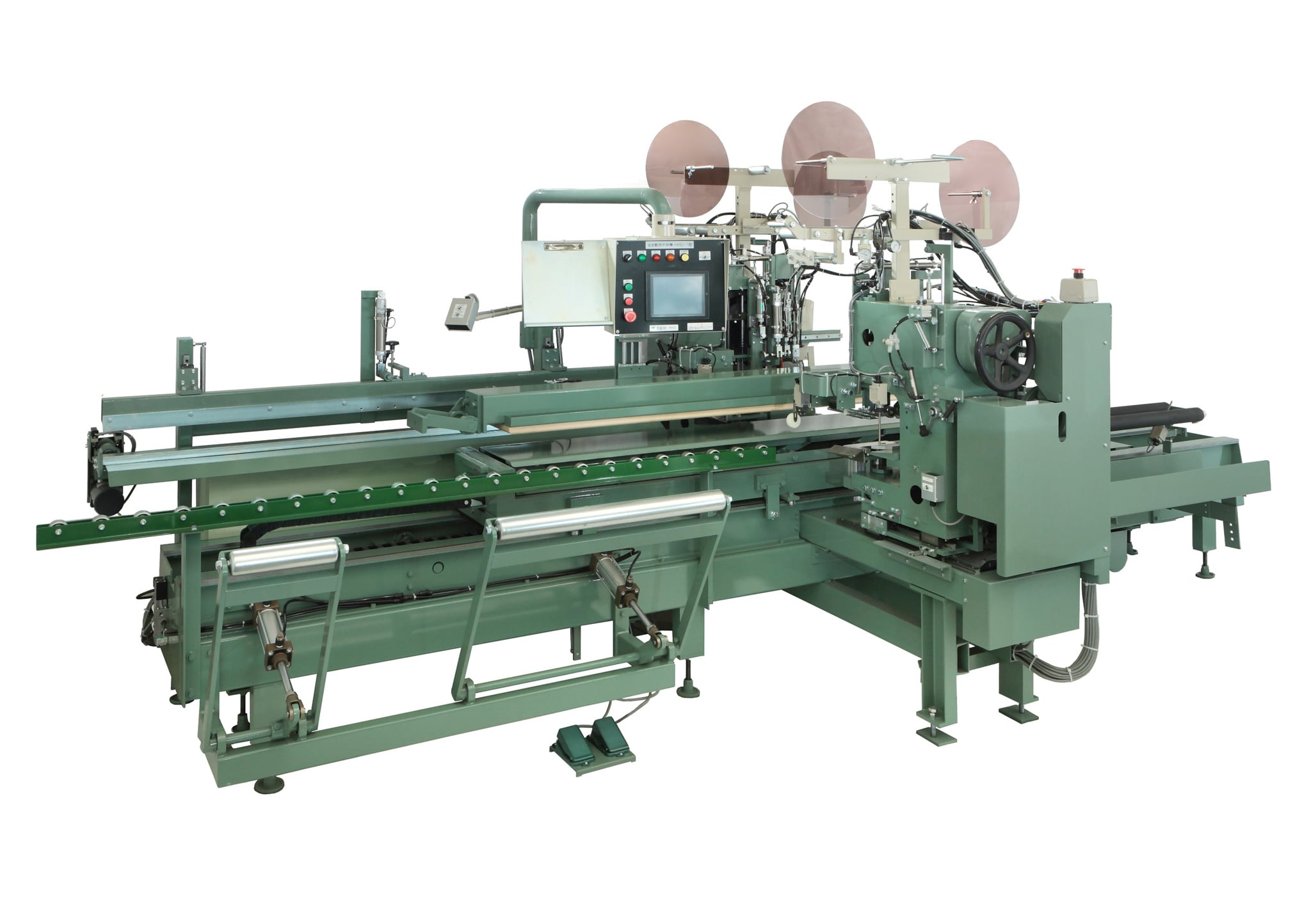

All both automatic flat splinters machine (sewing machine fixation type) FDW-2B type

Summary

Change setting, the cutting angle change of a relationship width change, the cutter blade is very easy!

<one thread ring sewing> Tip so cutting method

■Characteristic

●A relationship width change is very easy. (I can change it for - 1 sun four minutes for five minutes)
●The relations of a ruler and the knife do not change even if they change relationship width.
●As I cut it with an upper standard, the relationship width does not change even if the thickness of the floor changes.
●As both table cutter blade, floor cutter blades can go up and down, the setting in the wild last joke is modifiable only by screen operation table spare flip.
●A floor cutting angle is changeable to five times and 10 degrees.
●The rimless tatami is sectile on a habit dimensions street, too.
●The driving only for one side is easy, too.
●The table ruler is height adjustment regardless of floor thickness

■Specifications

Full length 4,950mm (3 sun of 16 shakus)
Width 2,150mm (1 sun of 7 shakus)
Height 1,950mm (4 sun of 6 shakus)
Tatami mat stand height 850mm (8 sun of 2 shakus)
Motor With 200W brakes for the sewing machine (two)
400W (nothing) for the forwarding
0.75kW (nothing) / 1.5kW (nothing) for the cutting
90W (two) for the table cutting
60W (nothing) for the habit collecting
Necessary power supply Three aspect 200V
Rating power consumption 4.2kW
I can sew it and am within an automatic range Length of the tatami mat 2 shaku 4 sun - 6 shaku 7 sun five minutes
3 sun of width 2 shaku 4 sun - 3 shakus
Thickness 10mm - 60mm
Automatic habit collecting range Per a Mayor of floor 3 shaku until four minutes
Sewing method One thread ring sewing
Sewing interval 10mm - 30mm (no stage)
Compressor More than 750W (option)
Dust collector 2.2kW (option)
