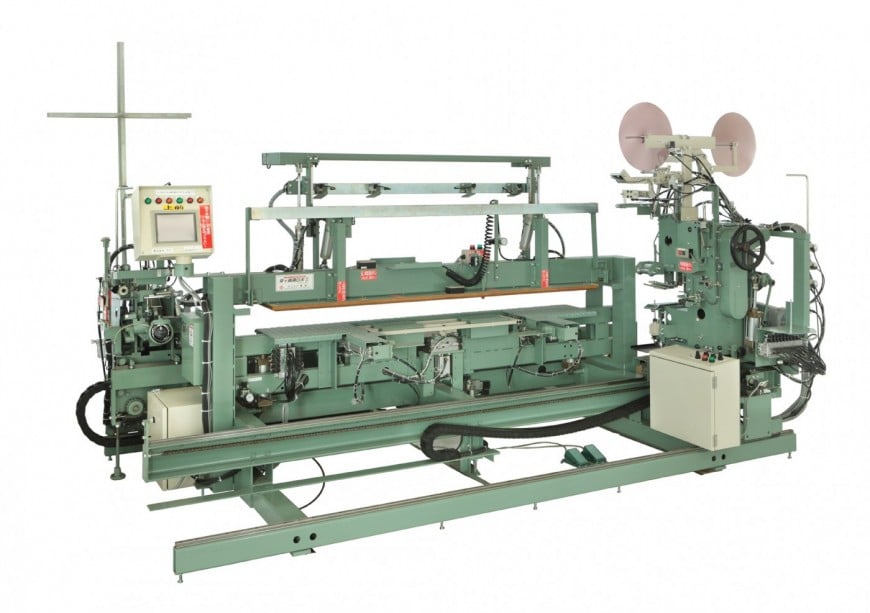

Flat splinter, backstitch for two uses robot KHW type

■Summary

I sew it separately at a flat splinter sewing machine, the backstitch sewing machine same time, and the work efficiency improves remarkably, too!

Backstitch robot
Arc needle
Plover sewing, new ladder sewing

■Characteristic

●Other than commission ruler alignment, Sumi stopping work all all automatic driving,
A tatami mat automatically turns and automatically sets a tatami mat to a ruler.
●It is arrival at commission backstitch, the lower former flat splinter after arrival at upper front flat splinter sewing, commission Sumi stopping work
As I sew sewing it at the same time, 1 process is early and can work by all means.
●A relationship width change is very easy. (I can change it for - 1 sun four minutes for five minutes)
●The relations of a ruler and the knife do not change even if they change relationship width.
●Even if as cut it with an upper standard, the thickness of the floor changes; the relationship width
I do not change.
●Both table cutter blade, floor cutter blades are table spare ・ in being able to go up and down
The setting in flip, the wild last joke is modifiable only by screen operation.
●A floor cutting angle is changeable to five times and 10 degrees.
●The rimless tatami is sectile on a habit dimensions street, too.
●As for the table ruler, the height adjustment is unnecessary regardless of floor thickness.

■Specifications

Full length 3,500mm (5 sun of 11 shakus)
Width 2,500mm (2 sun of 8 shakus)
Height 1,970mm (5 sun of 6 shakus)
Tatami mat stand height 740mm (5 sun of 2 shakus)
Motor With 200W brakes for the sewing machine (two)
400W (two) for the forwarding
1.5kW (nothing) for the cutting
90W (nothing) for the table cutting
60W (nothing) for the habit collecting
Necessary power supply Three aspect 200V
Rating power consumption 3.6kW
I can sew it and am within an automatic range 6 sun of length of the tatami mat 2 shaku 4 sun - 6 shakus
3 sun of width 2 shaku 4 sun - 3 shakus
Thickness 10mm - 60mm
Automatic habit collecting range Per a Mayor of floor 3 shaku until four minutes
Sewing method (flat splinter) One thread ring sewing
(return) Two thread final sewing
Sewing interval 20mm - 55mm (no stage)
Compressor More than 750W (option)
Dust collector 2.2kW (option)
