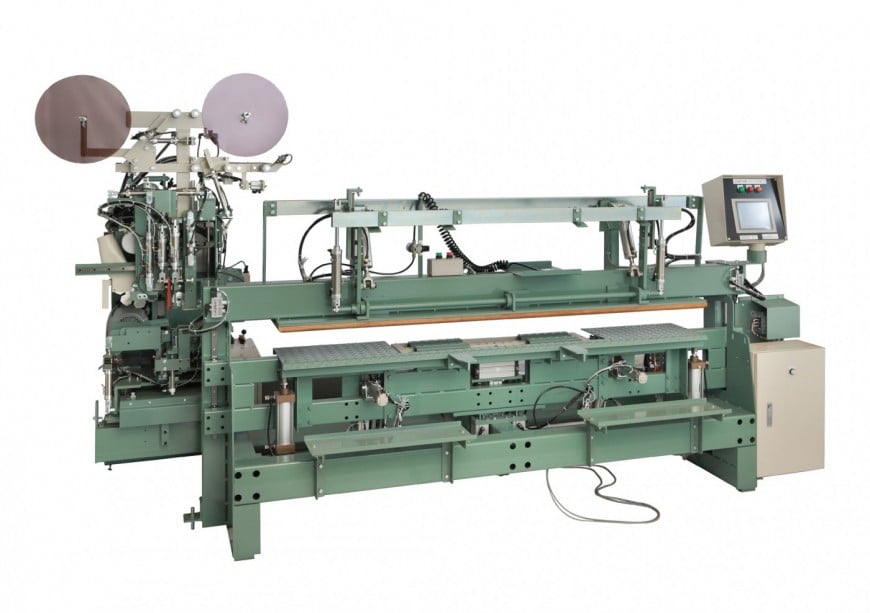

All automatic flat splinters machine support 3 HM-3 type
■Summary

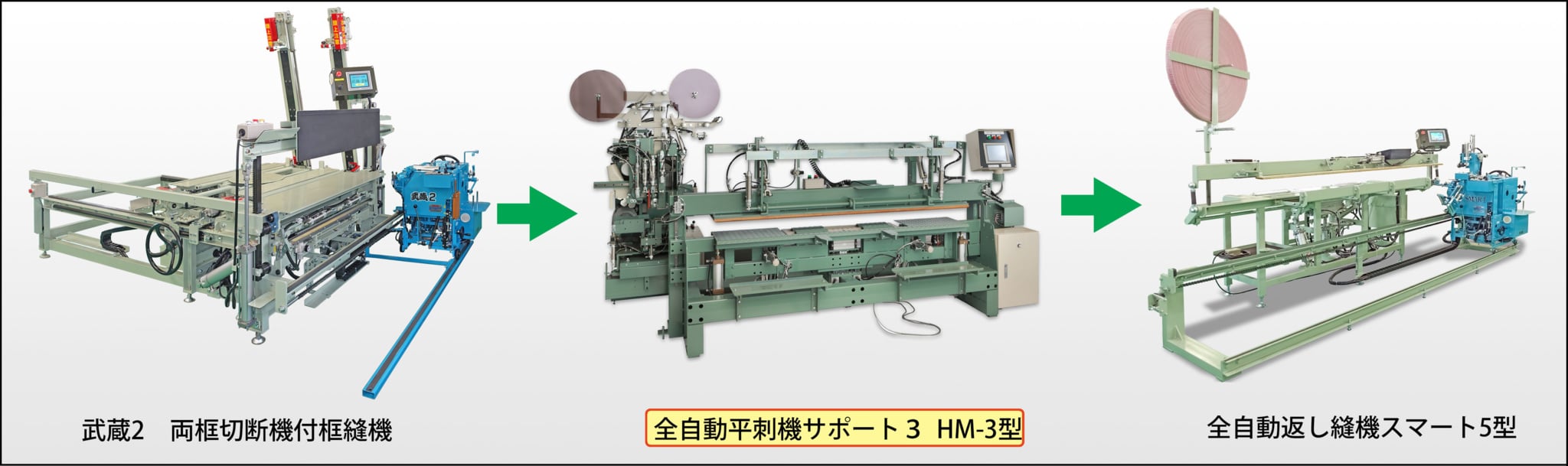

Only by commission ruler alignment, I operate all the all steps of the flat splinter automatically!
<one thread ring sewing> Tip so cutting method
A table spare; is convenient inside out; imitate it, and is with a device
A table spare; is convenient inside out; imitate it, and is with a device
■Characteristic
●A relationship width change is very easy. (I can change it for - 1 sun four minutes for five minutes)
●The relations of a ruler and the knife do not change even if they change relationship width.
●As I cut it with an upper standard, the relationship width does not change even if the thickness of the floor changes.
●As both table cutter blade, floor cutter blades can go up and down, the setting in the wild last joke is modifiable only by screen operation table spare flip.
●A floor cutting angle is changeable to five times and 10 degrees.
●The rimless tatami is sectile on a habit dimensions street, too.
●As for the table ruler, the height adjustment is unnecessary regardless of floor thickness.
●With detective device running out of thread.
●With relationship, lower little things detection device.
●The relations of a ruler and the knife do not change even if they change relationship width.
●As I cut it with an upper standard, the relationship width does not change even if the thickness of the floor changes.
●As both table cutter blade, floor cutter blades can go up and down, the setting in the wild last joke is modifiable only by screen operation table spare flip.
●A floor cutting angle is changeable to five times and 10 degrees.
●The rimless tatami is sectile on a habit dimensions street, too.
●As for the table ruler, the height adjustment is unnecessary regardless of floor thickness.
●With detective device running out of thread.
●With relationship, lower little things detection device.
■Specifications
| Full length | 3,500mm (5 sun of 11 shakus) |
| Width | 1,700mm (6 sun of 5 shakus) |
| Height | 2,000mm (6 sun of 6 shakus) |
| Tatami mat stand height | 740mm (5 sun of 2 shakus) |
| Motor | With 200W brakes for the sewing machine (nothing) |
| 400W (nothing) for the forwarding | |
| 1.5kW (nothing) for the cutting | |
| 90W (nothing) for the table cutting | |
| 60W (nothing) for the habit collecting | |
| Necessary power supply | Three aspect 200V |
| Rating power consumption | 2.9kW |
| I can sew it and am within an automatic range | 6 sun of length of the tatami mat 2 shaku 4 sun - 6 shakus |
| 3 sun of width 2 shaku 4 sun - 3 shakus | |
| Thickness 10mm - 60mm | |
| Automatic habit collecting range | Per a Mayor of floor 3 shaku until four minutes |
| Sewing method | One thread ring sewing |
| Sewing interval | 20mm - 55mm (no stage) |
| Compressor | More than 750W (option) |
| Dust collector | 2.2kW (option) |
