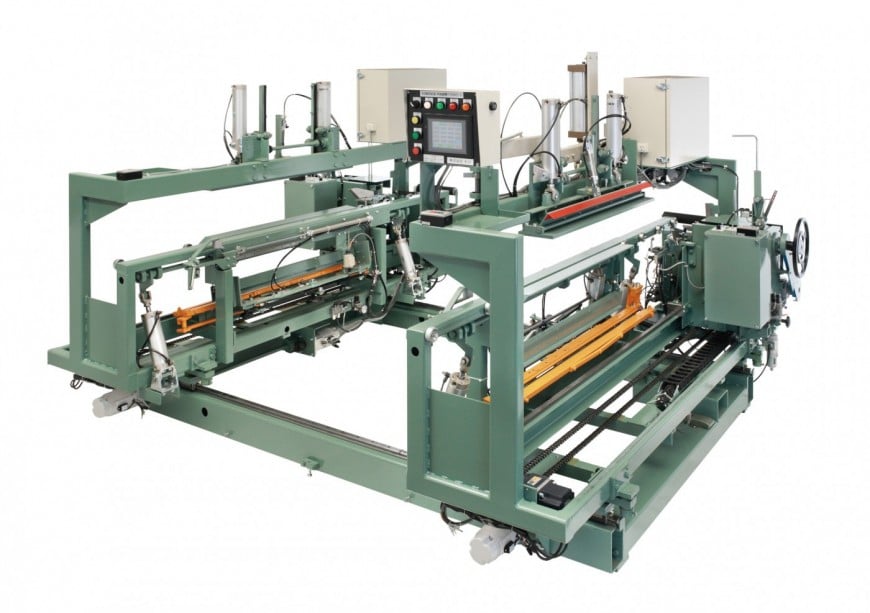

zenjidohyochoryokamachihoki KSW-2 type
■Summary
It is all automatic with positioning, front of tatami mat tension, tatami mat weight, doorcase sewing, thread cutting, tatami mat sending out!
Arc needle with automatic floor occasion device, ladder sewing
Characteristic
●As I suppress hyochogo, the side of the doorcase well and sew it, there is no slack of the table.
●I sew it for a doorcase habit automatically.
●The arrival at table tension sewing of the rimless tatami is possible, too.
●As for the tension temperature that not only tatami facing could swell, but also put the table tension together in a table freely.
●After sewing it, I send a tatami mat off automatically.
●I can easily perform sewing it only for one side.
●I come by continuous adjustment with a steering wheel by sewing height.
●Operation is easy with a color LCD screen!
・If there is an abnormality, I am displayed by a screen.
・I come back to the fixed position when I push the original position return button.
●I sew it for a doorcase habit automatically.
●The arrival at table tension sewing of the rimless tatami is possible, too.
●As for the tension temperature that not only tatami facing could swell, but also put the table tension together in a table freely.
●After sewing it, I send a tatami mat off automatically.
●I can easily perform sewing it only for one side.
●I come by continuous adjustment with a steering wheel by sewing height.
●Operation is easy with a color LCD screen!
・If there is an abnormality, I am displayed by a screen.
・I come back to the fixed position when I push the original position return button.
■Specifications
| Full length | 3,200mm (5 sun of 10 shakus) |
| Width | 2,450mm (8 shakus) |
| Height | 1,500mm (5 shakus) |
| Tatami mat stand height | 820mm (7 sun of 2 shakus) |
| Motor | With 200W brakes for the sewing machine (two) |
| 400W (two) for the forwarding | |
| 90W (nothing) for the width hotchpotch | |
| Necessary power supply | Three aspect 200V |
| Rating power consumption | 1.5kW |
| Arrival at table tension sewing is within a possible range | 6 sun of length of the tatami mat 2 shaku 5 sun five minutes - 6 shakus |
| 3 sun of width 1 shaku - 3 shakus | |
| Thickness 13mm - 60mm | |
| Sewing method | Two thread final sewing (ladder sewing) |
| Sewing interval | 20mm - 55mm (no stage |
| Compressor | More than 750W (option) |
